Reinforced graphite gasket is an improved semi-metal gasket reinforced by a metallic mesh, foil or tanged metal. It is laminated from compressed layers of purified natural graphite flake and mechanically bonded with the stainless steel tangs to ensures the material retains dimensional stability in high temperatures.
Reinforced graphite gasket has many excellent sealing properties, such as heat stability, self-lubrication, corrosion resistance and without being brittle and aging. In addition, under extreme conditions, reinforced graphite gasket can be used stably for long time without maintenance. So it is suitable for pipe, valve, pump, pressure container, heat exchanger and condensate.
Reinforced graphite gasket can be made into special shapes.
Common specifications
Reinforced material:
Low carbon tanged metal reinforced layer

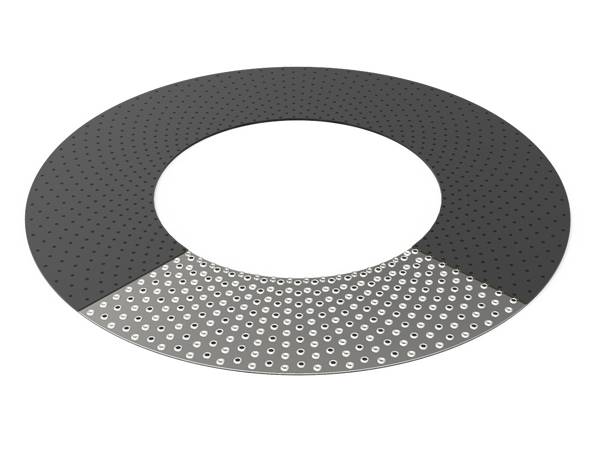

Stainless steel tanged metal reinforced layer

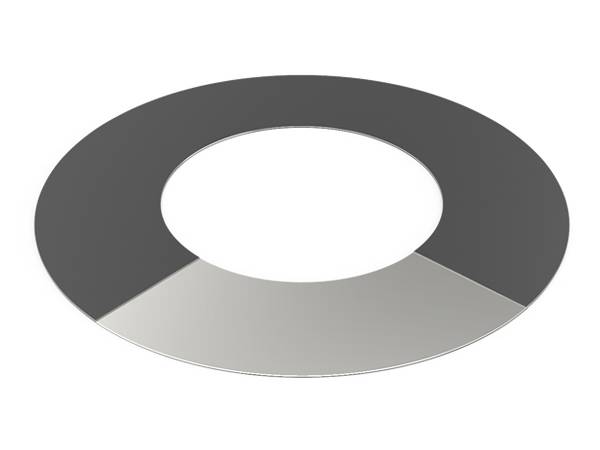

Stainless steel flat sheet reinforced layer

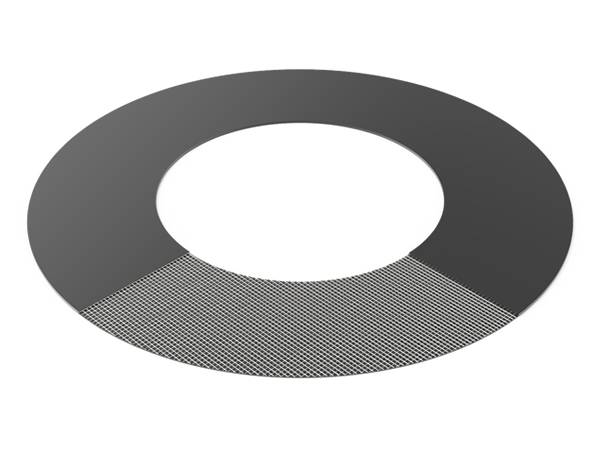

Stainless steel mesh sheet reinforced layer
| Reinforced Materials | Pressure (N/mm2) | Compressibility (%) | Recovery (%) | Gas Permeability (cm3/min) (T=1.5 mm) | Sealing Quality (T=1.5 mm) | Sealing Constant | ||
|---|---|---|---|---|---|---|---|---|
| N2m (1/hr) | Bumming Oil AM (1/hr) | "M" | "Y" | |||||
| Tanged Carbon Steel Gasket | ≥ 4.8 | 30–35 | 15–20 | ≤ 0.8 | 30 | < 0.5 | 3.0 | 9000 |
| SS304/SS316 Tanged Gasket | 30–35 | 15–30 | ≤ 0.8 | 60 | 2.5 | 4000 | ||
| SS304/SS316 Flat Gasket | 30–40 | 10–15 | ≤ 0.4 | 35 | 2.0 | 900 | ||
| SS304/SS316 Mesh Sheet | 40–50 | 15–20 | ≤ 0.1 | 70 | 3.0 | 5000 | ||
Features
Applications
Reinforced graphite gasket is suitable for pipe, valve, pump, pressure container, heat exchanger, condensate punched flange, cylinders of diesel engines and water meter.

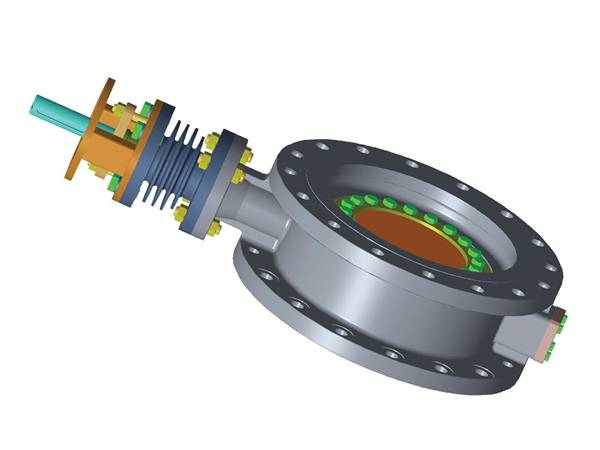

Reinforced graphite gaskets for valve

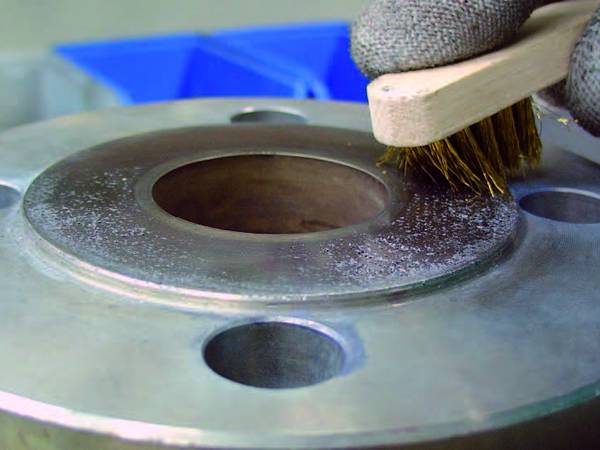

Reinforced graphite gaskets for flange
