Asbestos Gasket – Ideal Insulating and Corrosion Resistant Material

Asbestos Gasket is inexpensive, readily available and stable. It is fireproof and can withstand extreme heat making it the ideal thermal isolation material. As well, asbestos gaskets are non-corrosive, impervious to chemical reactions and non-conductive of electricity.

It is widely used in exhaust systems, turbo chargers and cylinder.

Types

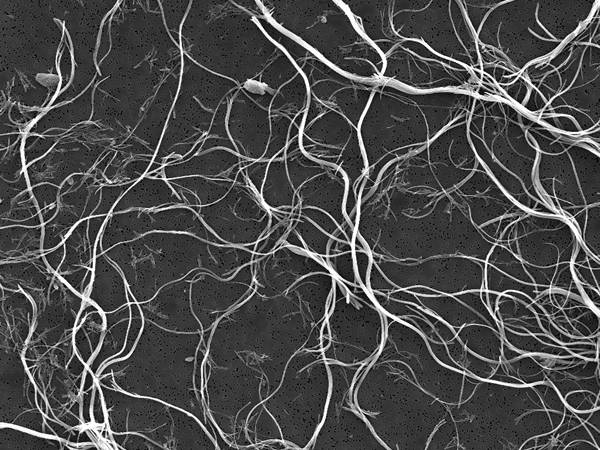

White fibrous chrysotile asbestos on a black background

Chrysotile asbestos

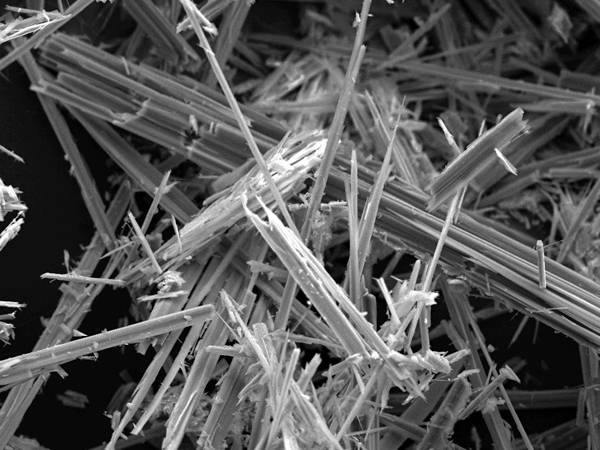

Grey acicular fiber amphibole asbestos on a black background

Amphibole asbestos

Common specifications

Thickness (mm) 0.4–6.0
Plate sizes (mm) 1000 × 1500, 1270 × 1270, 1270 × 1300, 1270 × 3810, 1300 × 1300, 1350 × 1350, 1350 × 1500, 1360 × 1500, 1500 × 1500, 1500 × 2000, 1500 × 3000, 1500 × 4000, 1500 × 4100, 1500 × 4500, 2000 × 3000
Maximum continuous working temperature 200 °C
Steam max continuous working temperature 120 °C
Maximum operating pressure 70 bar
Maximum pressure (MPa) 1.5
Tensile strength (MPa) ≥ 6
Compressibility 12 ± 5 %
Density (g/cm3) 1.6–2.0
Color red, green, blue, yellow, black, gray and more

Features

  • High seal ability.
  • Accurate dimension.
  • High strength.
  • Smooth surface, no bubble, no leakage ,no crack.
  • High compressibility and high recovery.
  • Smallest thickness tolerance.
  • Different color to choose.

Classical applications

  • Gasoline and diesel engines
  • Furnaces and boilers
  • Shipbuilding flanges
  • Chemical plants
  • Electrical generating stations
  • Piping flanges
  • Valves
  • Refining equipment and steam trap work
  • Water supply, drainage and waste water treatment

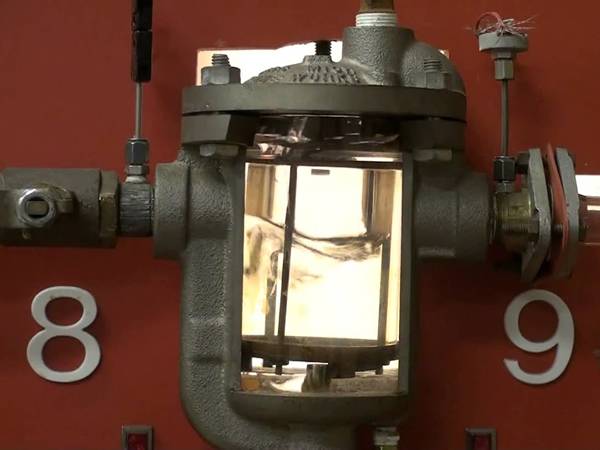

The steam trap with the asbestos gasket is working in front of the red wall.

Asbestos gasket steam trap work

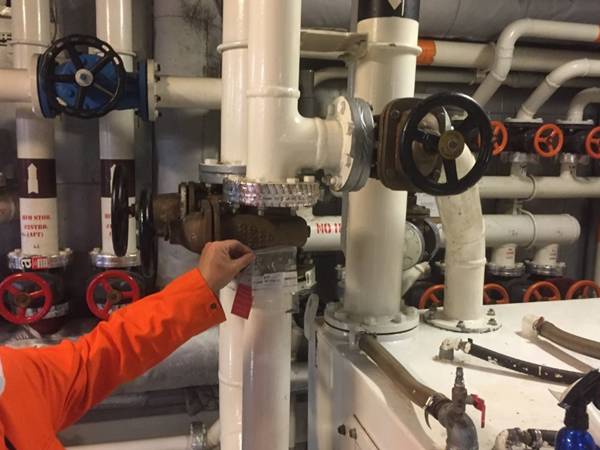

The asbestos is mounted on the white flange of the ship with a people in.

Asbestos gasket shipbuilding flange
